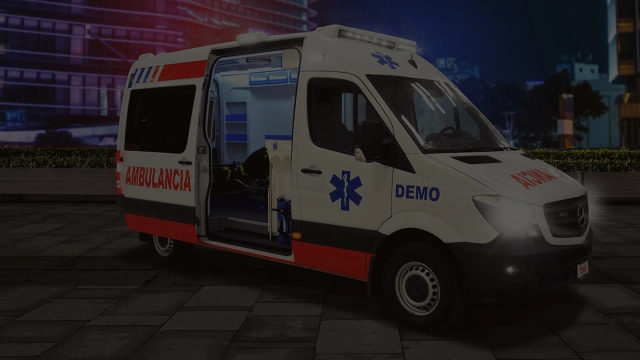

Our TSN Ambulance has features that have been used in a detailed finite element model, the process is verified by the stresses it must withstand with an acceleration impulse of 10G in amplitude and an average duration of 100 mIL / sec., with impact speeds between 30 and 32 km / h. The sanitary area has been designed to take advantage of most of the available space while complying with the dimensions indicated by the regulations.

The structural reinforcements are made of galvanized metal profiles for better fastening at the indicated furniture mounting points.

Emergency Vehicles

About Ambulances

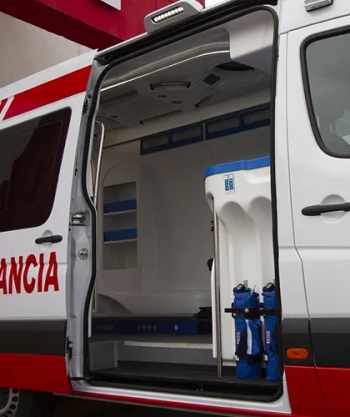

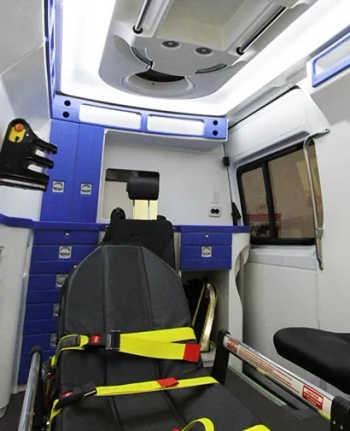

Interior Design

Interior Design

Optimal use of space and maximum conversion weight that does not exceed the unit manufacturer’s recommendations. Structural and coating materials provide resistance, mechanical strength and rigidity, stress tolerance under temperature changes, and resistance to chemical agents.

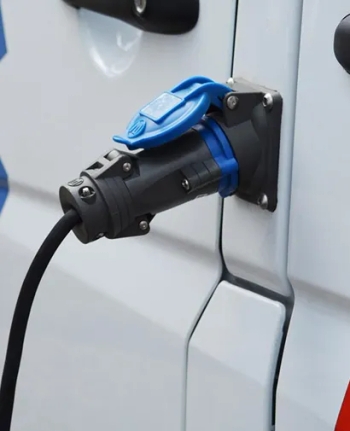

Electrical Equipment

Electrical Equipment

Master switch that isolates the electrical installation of the conversion
Auxiliary control panels for lighting control at the side and rear doors

Power inverter
Battery charger
110V power outlets
Smart battery indicator
12V outlet in the medical care cabin
Two USB connections in the medical care cabin
Conversion Structure

Conversion Structure

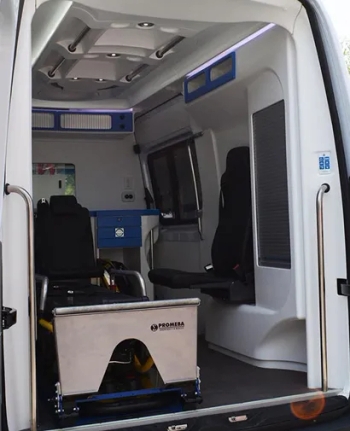

It is reinforced with steel and structural aluminum, and bonded with special adhesives and mechanical fasteners that preserve the vehicle manufacturer’s warranty. The interior linings and furniture are mounted on this structure in a way that prevents the risk of detachment that could endanger occupants.

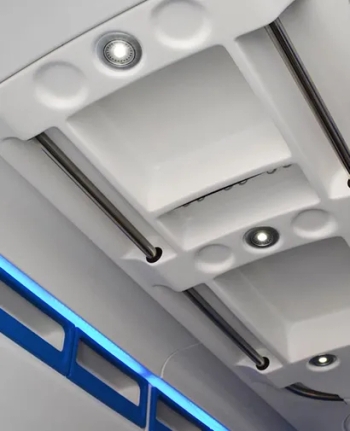

Unit Lighting

Unit Lighting

Interior: LED-based lighting system that allows control and adjustment of intensity to meet the various needs of the work team and the patient inside the medical cabin.

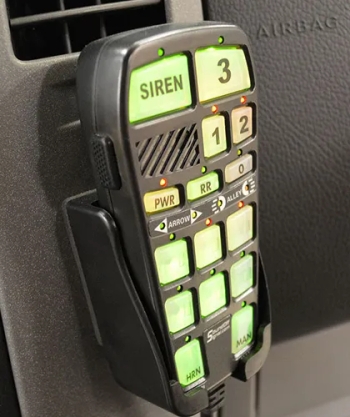

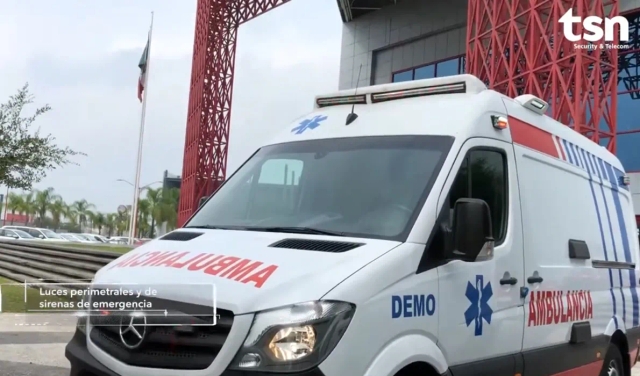

Exterior: Features two types of lighting: perimeter lights for scene illumination, and emergency lights and siren for service operation.
Control System

Control System

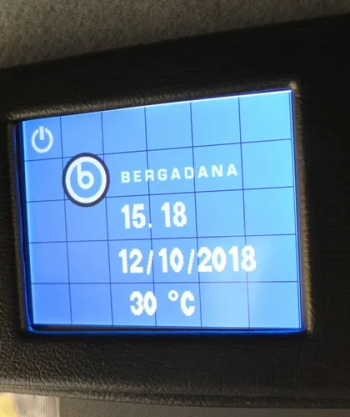

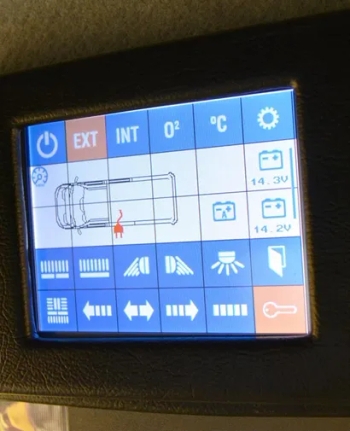

Two touch screens allow the management, monitoring, and control of the ambulance systems. One is located in the medical section and the other in the driving area, facilitating operation.
Oxygen System

Oxygen System

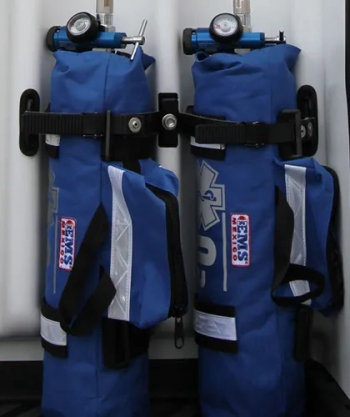

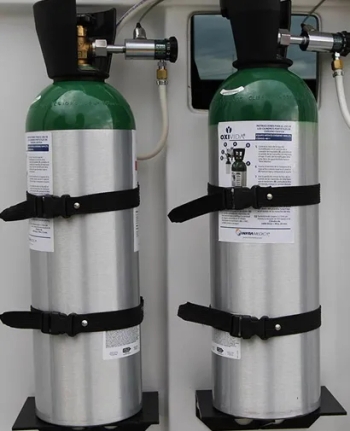

It features two oxygen tanks of 1,699 liters each, facilitating maneuverability, a high-pressure gauge in a distribution system, and a flowmeter output from 2 to 15 liters per minute. The digital system allows measurement and monitoring of oxygen levels from the unit’s touch screens.
